Automated Processing Infrastructure
High-performance conversion equipment engineered for precision, speed, and production longevity.

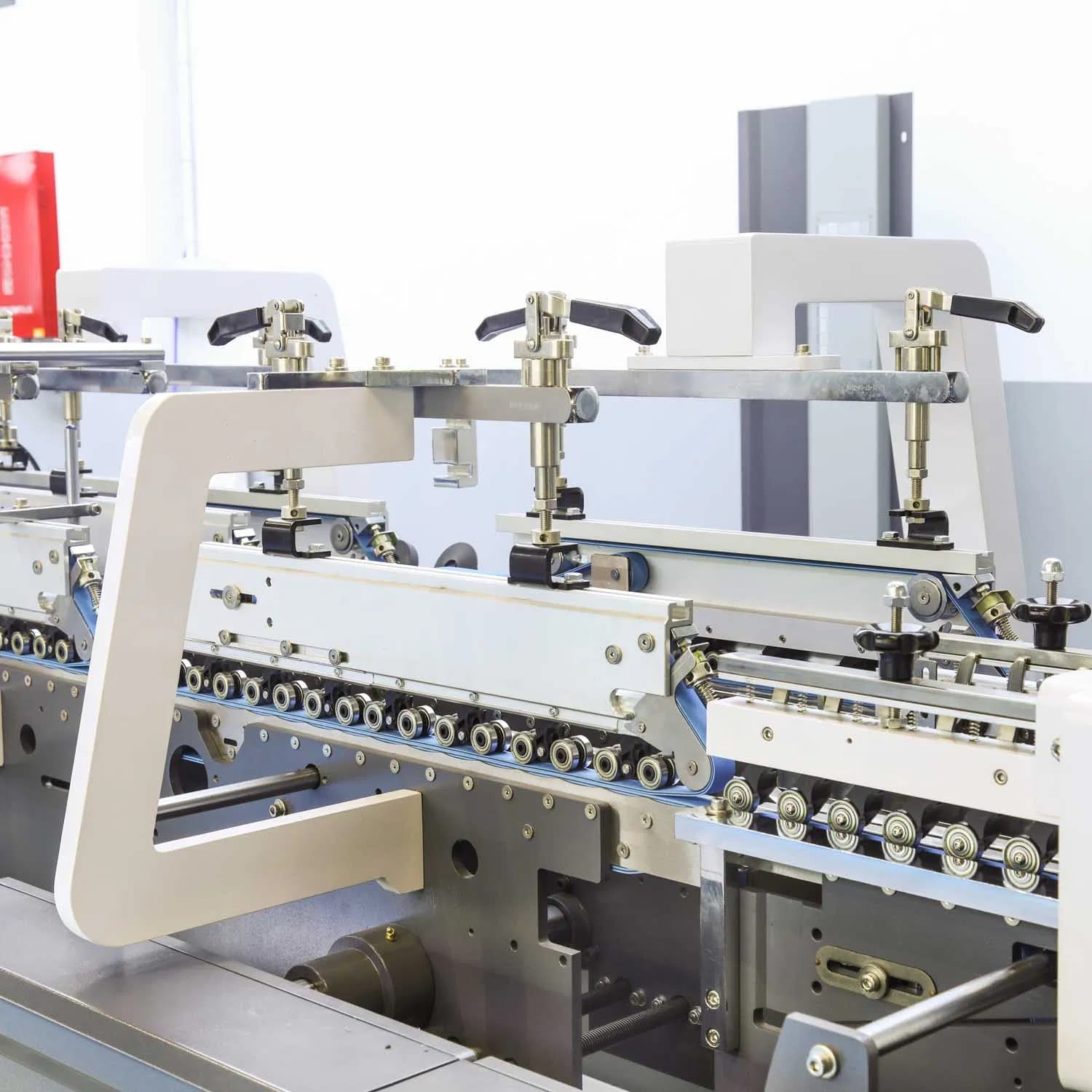

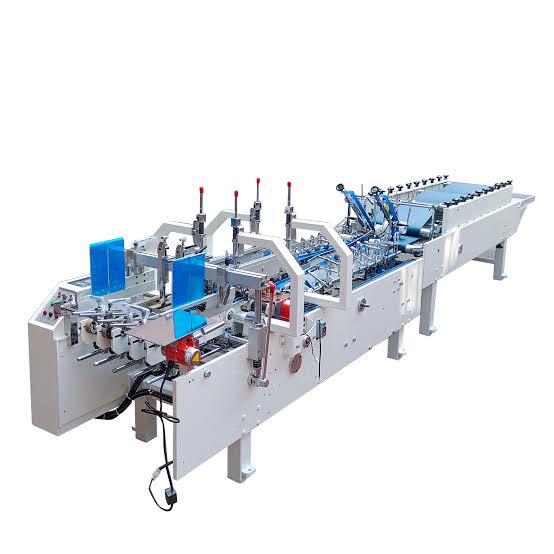

Packronic Automatic High-speed Folder Gluer
Packronic box folding gluing machine ms straight line, lock bottom, 4 & 6 corner cartons and more, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons. (We can customize of other size).
| Packronic TECHNICAL PARAMETERS | |||
|---|---|---|---|
| Item | 650 Specification | 800 Specification | 1100 Specification |
| Paper material | Cardboard 210-800gsm, E/N/F Flute | ||
| Max. speed | 400m/min | ||
| Max. thickness of folded box | 12mm | ||
| Way of folding | Fold 1 and fold 3 are 180° and 135°, fold 2 and fold 4 are 180° | ||
| Power supply | 3P 380V 50HZ | ||
| Blank width | 650mm | 800mm | 1100mm |
| Length x Width x Height | 15.2x1.35x1.45m | 15.2x1.5x1.45m | 15.2x1.85x1.45m |
| Net Weight | 4.5T | 5T | 5.5T |
| Total power | 19.5kw | 19.5kw | 19.5kw |

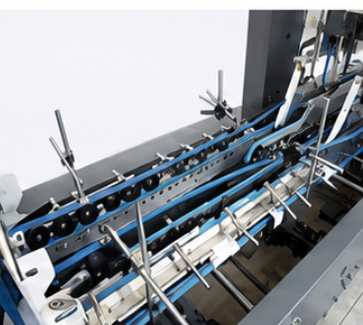

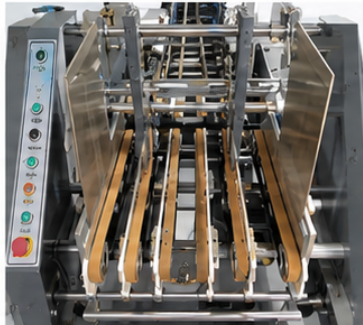

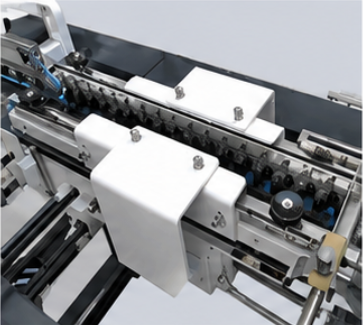

Packronic Modular Machine Layout
Function & Features
- Apply to cardboard paper box.
- Strong stainless steal frame, insure machine running stably with high speed.
- Automatic fault diagnosis alarm function, Wireless remote control for easy user operation.
- Machine with PLC control, photocell touch screen for adjusting machine.
- Side touch screen displays the machine's speed, output, fault alarm, touch screen controls the machine's start/stop, paper feeding clutch, box receiving part's start/stop, parameter setting and other operations.

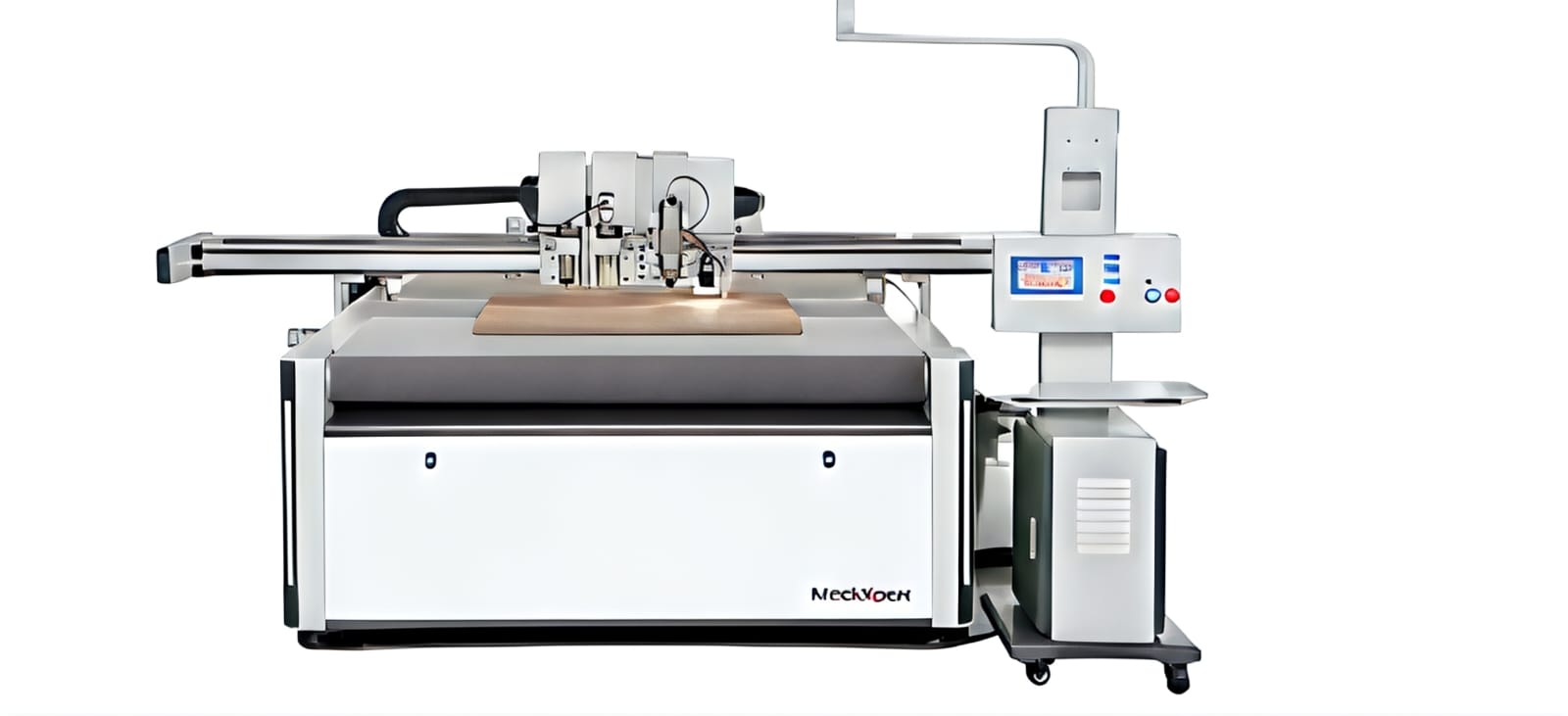

MockStar Series Digital Cutting Solution
The MockStar series high-speed digital flatbed cutter is Packronic's newly developed carton box sample-making system with significantly improved performance compared to the original design. It offers better processing speed, higher precision, more convenient operation, and a refined appearance.
Materials such as corrugated board, chipboard, foam board, plastic board, thin wood board, leather, and cloth can all be processed with our cutter. The MockStar series can be used for cutting, creasing, and drawing, making it ideal for sample making or small-scale production in the packaging sector, as well as in industries such as advertising, printing, electronics, gasket production, and signage.
The system supports the use of a plotting pen, oscillating cutting tool, creasing tool, and drag knife tool to meet various customer requirements. The ease of tool assembly and disassembly greatly improves operator efficiency. Additionally, heavy-duty tools such as the drag knife, V-cutter, and foam cutter expand its utility for special materials in different industries.
| MODEL | MockStar 1209 / 1209A | MockStar 1713 / 1713A | MockStar 2516 / 2516A |
|---|---|---|---|
| SIZES | 900 MM X 1200 MM | 1300 MM X 1700 MM | 1600 MM X 2500 MM |
| MOCKStar SERIES TECHNICAL PARAMETERS | |
|---|---|
| Model Name | MockStar - 2516 Double Heads Digital Cutting Machine |
| Working Area | 1600 mm (Y-Axis) x 2500 mm (X-Axis) |
| Working Table | Fixed vacuum working table |
| Material Hold | Vacuum suction system |
| Cutting Speed | 0 - 1,500 mm/s (as per material) |
| Cutting Thickness | ≤ 50 mm |
| Cutting Accuracy | ≤ 0.1 mm |
| Drive System | Taiwan Delta / Germany Servo Motors and Drivers |
| Transmission System | Taiwan Linear square guide rails |
| Supported Formats | PLT, DXF, AI, etc. |
| Compatible Software | CorelDRAW, Photoshop, AutoCAD, Tajima, etc. |
| Vacuum Pump / Total Power | 9 KW / 11KW |
| Voltage | AC 220V/380V±10%, 50/60HZ |
| Safety Devices | Infrared sensors & emergency stop |
| Machine Size | 3300 x 2100 x 1350 mm |
| Net Weight | 1000 Kgs |
Main Configuration
- • MockStar Automatic Typesetting Software
- • HD Touch Control Panel
- • Whole Cast Aluminum Vacuum Table
- • Premium Oscillating Cutting Tool (20 blades)
- • V-Cut Tool
- • Premium Creasing Tool (3 Wheels)
- • CCD Camera [Optional]
- • Carton Design Software
- • Taiwan Delta/Germany Servo Systems
- • Taiwan Linear Guide Rails & Rack Gears
- • Germany Igus Cables
